Key features

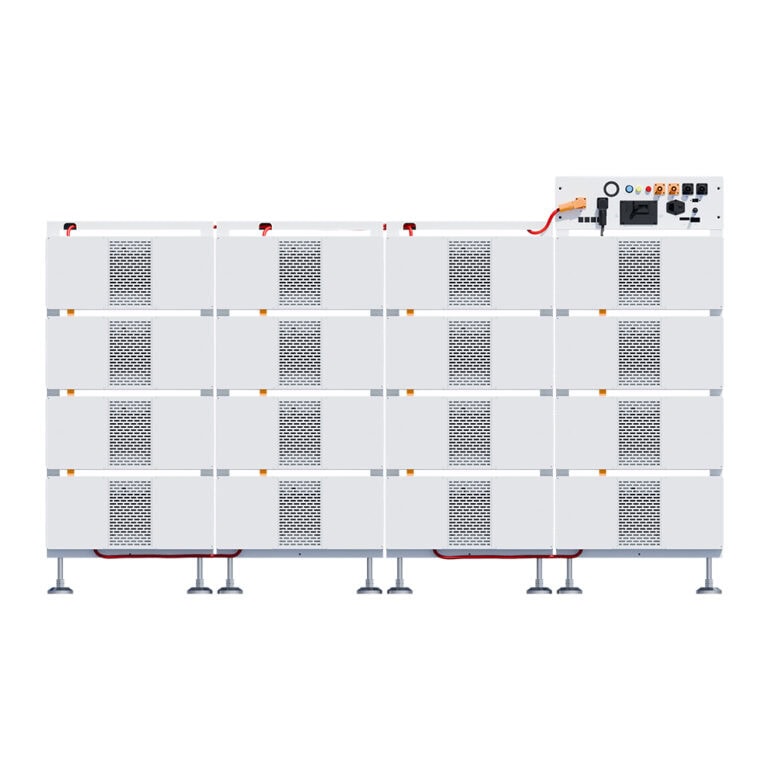

- 16.08 kWh BOS-B-Pack16-A3 modules (51.2 V, 314 Ah)
- One BOS-B-PDU-2-A control box per stack (1,000 V, 180 A)
- 5 to 15 modules per stack; 16 modules = 2 stacks of 8
- At least 6,000 cycles, 90% depth of discharge
Specifications
| Module | 16.08 kWh, 51.2 V, 314 Ah |
|---|---|
| Stack size | up to 15 modules |
| Control box | BOS-B-PDU-2-A |
Options
| Capacity | Price | How to buy |
|---|---|---|
| 6 modules – 96.48 kWh | On request | Request a quote |
| 7 modules – 112.56 kWh | On request | Request a quote |
| 8 modules – 128.64 kWh | On request | Request a quote |
| 9 modules – 144.72 kWh | On request | Request a quote |
| 10 modules – 160.80 kWh | On request | Request a quote |
| 11 modules – 176.88 kWh | On request | Request a quote |
| 12 modules – 192.96 kWh | On request | Request a quote |
| 13 modules – 209.04 kWh | On request | Request a quote |
| 14 modules – 225.12 kWh | On request | Request a quote |
| 15 modules – 241.20 kWh | On request | Request a quote |
| 16 modules – 257.28 kWh (2 stacks) | On request | Request a quote |
Works with
Deye commercial hybrid inverters (80 kW, 100/125 kW).
Datasheet
Download the official datasheet (PDF)
How to buy
This item is sold on quote. Request a quote and our sales engineers reply within one working day.
Installation by e-Phaim engineers
Add installation and we wire your home, office or facility in two layers. Critical loads like lighting, computers, servers and security stay on. Heavy loads like air conditioners switch off on their own when the sun is weak and there is no grid, so your essentials keep running.
Delivery and warranty
Delivery anywhere in Nigeria, with the cost worked out for each order. Pickup from our Abuja, Lagos or Maiduguri offices. Maker warranty on every item; returns only if faulty on arrival.
